Vannkjølt 2,2 KW spindelmotor

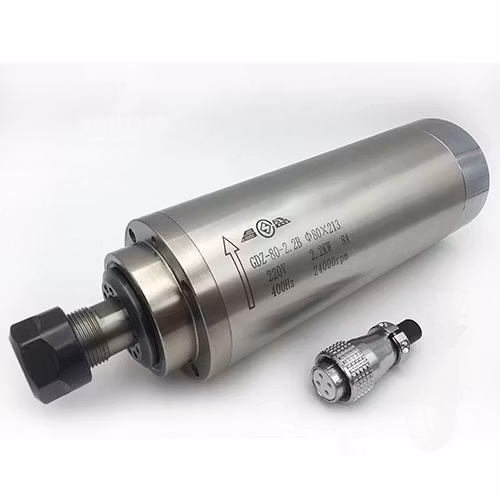

Vannkjølt 2,2 KW spindelmotor (80mm, ER20)

Model	GDZ-80-2.2B	ER20 Collet
Rev(rpm)	24000   Note: minimum 5000 rpm	ER20 collet capacity 1mm to 13mm (Radial Runout 3-5μm)
Power(kw)	2.2KW
Motor Type	Asynchronous
Voltage(V)	220V
Current(A)	8.5
Frequency(HZ)	400
Cooling Type	Water Cooling
Diameter(mm)	80
Lubricate	Grease
Bearing	7005C P4*2 DT     7002C P4*1
Collet(mm)	ER20 (1mm - 13mm)
Size	80mm * 213m
Weight	5kg

Spindles need to be cooled and this spindle uses water for this purpose. More importantly, this aspect of water cooling does not allow air movement to cool the spindle (as opposed to routers that move air through the router to cool by convection). Water cools the spindle using conduction (heat transfer through contact). This is important because, as opposed to air movement, water cooling will not blow the dust all over the shop, and the dust and chips left over by the milling and cutting process can be removed with a dust collector or vacuum.

The ports for the water cooling tubes or hose is located at the back of the spindle. The port fitting will accept a tube or hose that has a 1/4" (.25 inch) inside diameter and an outside diameter of 3/8" (.375 inch). Either port can be used for in or out. It's just important that the water flow through the body of the spindle.

The sound level from a spindle is extremely low as compared to routers. In fact, the sound from a spindle is quieter than the actual cutting and milling action from the end mill, and much quieter than a router.

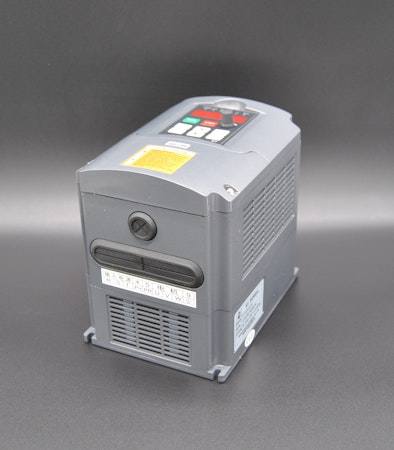

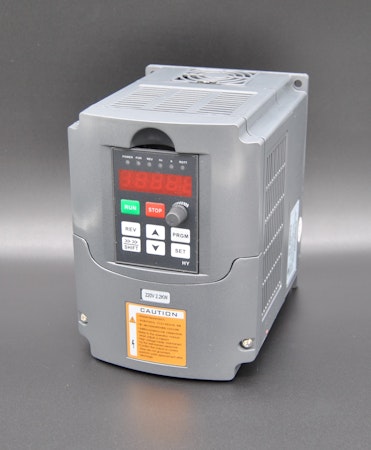

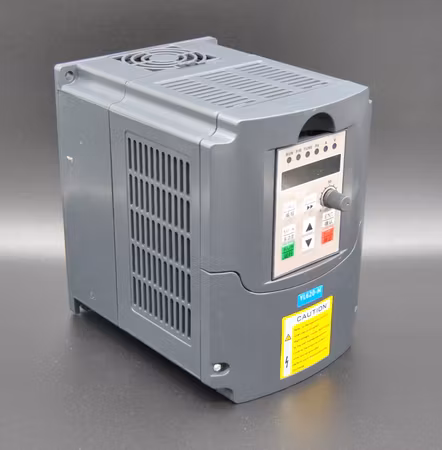

Spindles required the use of a VFD (Variable Frequency Drive) to function. These VFDs are also called spindle inverters. The VFD takes the power from the wall and creates a frequency with voltage and current to spin the spindle. The frequency can be controlled to control the RPM of the spindle.

Pin1 to U
Pin2 to V
Pin3 to W
Pin4 to Earth ( This pin is mandatory! )

NOTE: Do not directly plug it into electricity power, Spindle can be connected only to Frequency Inverter!
